  • Bi-directional 100 Volt Aluminium Sound Projector RH-CH205

Bi-directional 100 Volt Aluminium Sound Projector RH-CH205

※ Bi-directional speaker driver: full range 5"*2..
※ With rated power taps: 5W / 10W / 20W.
※ Built-in 100V transformer.
※ Enclosure,grille and mounting bracket are made of aluminium alloy.
※ Easy and secure through the adjustable U shaped mounting bracket.
  • Description
  • Specification
The RH-AUDIO Bi-directional 100 Volt Aluminium Sound Projector RH-CH205 is designed with two 5” moisture resistant full range speakers pointing in opposite directions,and continuous nominal power: 20W/10W/5W @ 100V transformer.

Its housing,mesh grilles and mounting bracket are made with stainless aluminium alloy,and IP65 protection make it ideal for train stations, underground stations, car parks, factories, warehouses, and PA systems in general.

Specifications of Bi-directional 100VoltAluminium SoundProjector RH-CH205


Bi-directional 100 Volt Aluminium Sound Projector RH-CH205 size

Model

RH-CH205

Rated Power

5W/10W/20W

Input Voltage

100V

Frequency Response

130Hz-15KHz

Sensitivity(1w,1n)

91±3 dB

Dimension

Φ138*205mm

Finished

White

Material

Aluminum alloy enclosure,grille & bracket

Speaker Driver

Waterproof 5"*2

Net Weight

2.9kg

IP Rating

IP65

Related Products

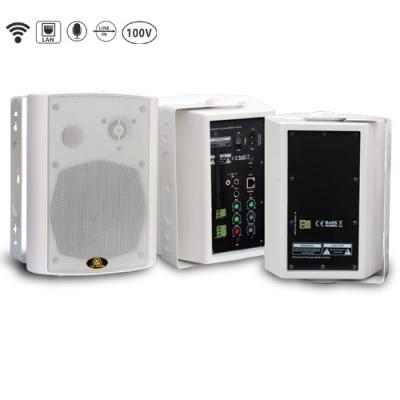

  • 2.4G Wireless Speaker with Built-in Amplifier
