MP3 MIXER AMPLIFIER

※ Built-in music streaming media including USB player,FM tuner and Bt receiver.
※ 70/100-volt and 4~16 ohms(Ω) output loads.
※ Two microphone (MIC1 & MIC2) jacks,MIC2 supports 48V Phantom Power with switch ON/OFF.
※ EMC input has priority over the other inputs.
※ SMT circuit boards with highly stable performance.
※ High-definition display for the working status of playing programme.
※ Individual volume controller for inputs,and master volume controller for all.
※ BASS and TREBLE tone controllers.
※ Power supply AC100-240V and DC24V.
※ Protection provided for output short circuit,overload,high temperature,peak current limiters.

Description
Specification

And this amplifier features two unbalanced microphone inputs and two AUX inputs,moreover the MIC1 has "VOICE PRIORITY" over the other inputs except of the alarm input,moreover a group of line level output is available for adding additional amplifier.

Equipped with step-up transformer to be best suitable for any 70-volt or 100-volt line public address system,in the same time 4~16 Ohm output load is also provided.

Level controllers include individual volume controller for inputs,master volume controller for all,BASS and TREBLE tone controllers.

Complete protection is provided for over temperature,over voltage,over load and short circuit speaker line conditions.

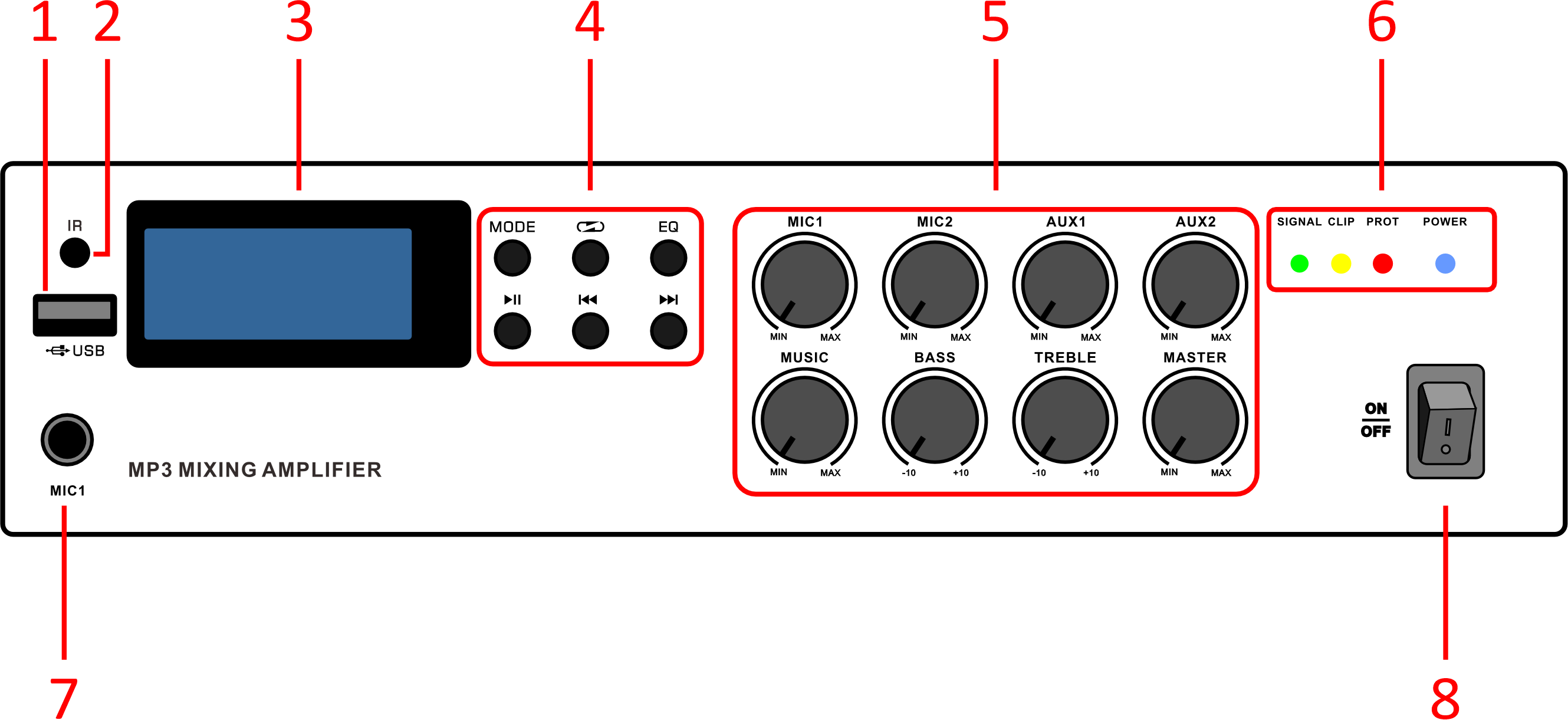

1.USB drive input 2.IR 3.Screen 4.Media Player control buttons

5.volume controls 6.VU-Meter 7.MIC1 Input 8.POWER Indicator

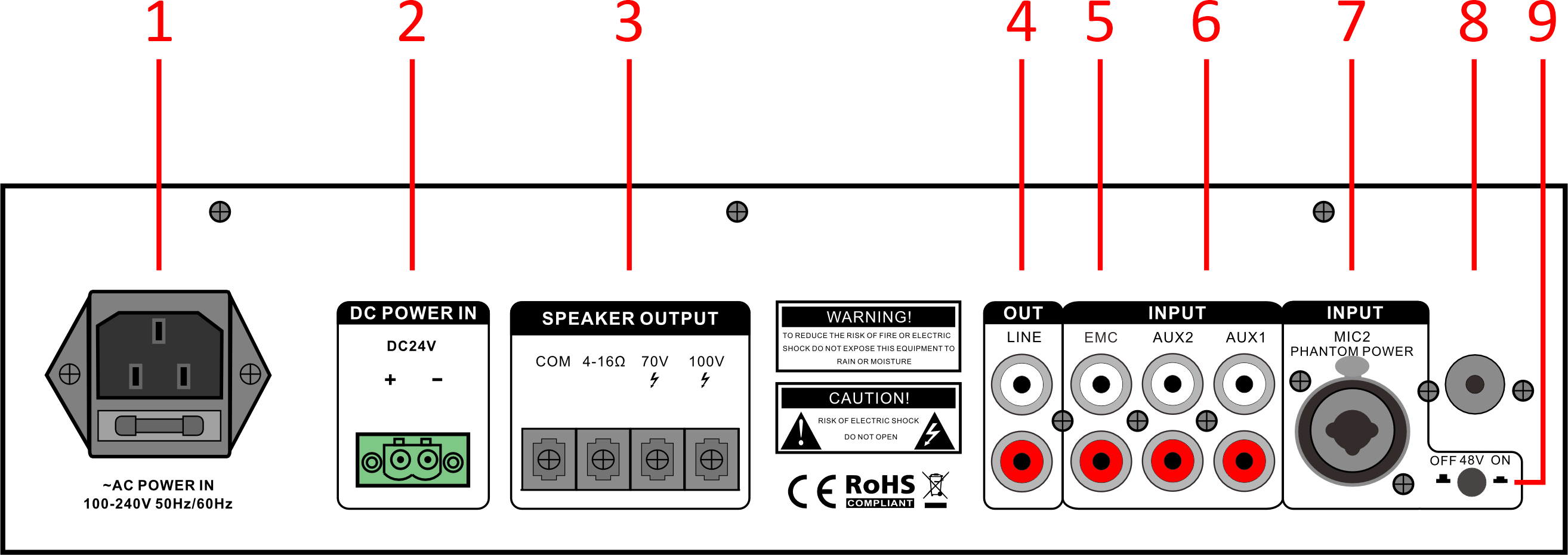

1.Mains power input & fuse holder 2.DC Power Inlet 3.Amplifier output

4.RCA Line output 5.RCA EMC input 6.RCA AUX input

7.MIC2 input 8.FM antenna connector 9.Phantom Power Switch

Model	RH61PM	RH121PM
Rated Power	60W	120W
Speaker Output Mode	Low impedance:4-16 ohms (Ω)
	Voltage line:70V & 100V
Compatible Media	USB,BT,FM,Aux In
Playable Formats	MP3,WMA,WAV,FLAC,APE
BT Name	BGM SYSTEM
BT Frequency	2402~2480 MHz
BT E.I.R.P	2 dBm
FM Tuner Frequency	87.50~107.50 MHz
Frequency Response	60 Hz ~ 15k Hz (± 3 dB)
T.H.D	<1% at 1kHz,1/3 rated power
S/N	≥75dB
Tone Control	BASS:100 Hz (± 10 dB) , TREBLE:10k Hz (± 10 dB)
Protection	Short circuit,overload,high temperature
AC Power Supply	AC100V~230V / 50Hz, 0.33A
AC Fuse	T3.15A
DC Power Supply	DC24V, 3.13A
Power Cord	(3×0.75 mm2)×1.5M
Dimension	75(H)×300(W)×215(D) mm
Carton Size	115(H)×340(W)×280(D) mm
Net Weight	4.90kg	5.50kg
Gross Weight	5.60kg	6.10kg
