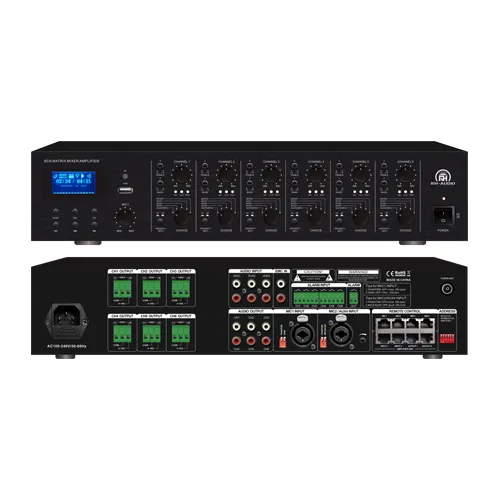

RH-6240MMA 6CH Matrix Mp3 Mixer Amplifier

※ Advanced digital Class-D amplifier circuitry.
※v6*240W rated power .
※ Built-in Mp3 module with USB Player, Bluetooth, FM.
※ LCD screen with display size (128*64) to show all details of playing
※ Matrix audio choice: Audio inputs(AUX1/AUX2/AUX3/AUX4/MUSIC) can be selected  for any channel/channels.
※ Six channel line outputs are available to connect additional amplifiers if power (watt) is not enough when more speakers add. 8 Ohm
※ Remote voice paging: Can support connecting 4 remote microphones,   which can make voice announcement to any selected zone or zones remotely (reference picture of microphone will submitted once it's ready).
※ Expandable up to totally  36-zone speaker system ,Six amplifiers can be linked together to realize
※ 100Volt / 8 Ohms※ Metal  panel with standard 19" 2U height.
※ Protections of short circuit ,overload, high temperature.
※ Compliance with CE & RoHS


  • Description
  • Specification

Connection



Specifications

ModelRH-6240MMA
Output Mode4-16 ohms/100V line voltage
Frequency Response60Hz~15kHz(±3dB)
Total Harmonic DistortionTHD ≤<0.5% at 1kHz,1/3 rated power
Power SupplyAC110-240V 50/60Hz
Signal-to-Noise Ratio  S/N ratio >70dB
Operating Temperature-10 °C to +40 °C (14 °F to 104 °F)
Operating Humidity90% RH or less (no condensation
Dimensions (mm)430x330x90mm
Weight7.5kg
